Make every card a symbol of trust

The structure is simple, the configuration is flexible, and it can be freely combined according to customer needs

Multi database integration

Multi format database direct connection,Zero error in certification,precise and unbounded data!

Multi printing mode

Integrated platform intelligent control, multi-threaded module intelligent parallel connection. Highly integrated operation simplifies complexity.

Laser etching printing technology is a non-contact, high-precision processing technique that uses high-energy laser beams to precisely ablate and remove some substances on the surface of materials, thereby forming patterns or text.

Laser etching printing

Intelligent certification system

Single and double-sided free printing, CLI/MLI dual-mode Anti counterfeiting carving, with four modes to choose from

Environmental protection and energy saving

2400dpi ultra fine engraving, 0.01mm laser dot matrix penetration anti-counterfeiting - micro level resolution, endowing each document with an irreplaceable security gene

Intelligent issuance safe and reliable

Intelligent chip encryption, personalized data distribution, and data deletion as soon as it is sent.

HD resolutions

The device is equipped with an air f iltration system to prevent harmful gases from being generated during the etching process of various certificates and cards, ensuring safe use.

Modular design

Desktop design

Small stature, great achievements! Free up your desktop space, Make efficient office more refined and free!

Product specifications

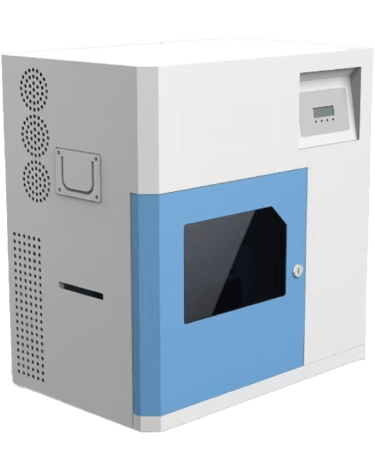

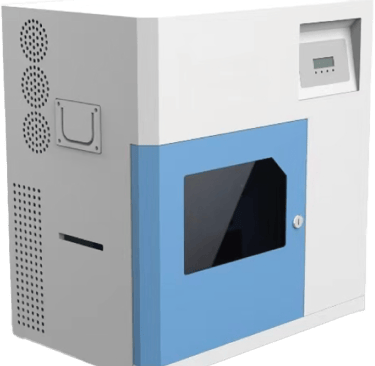

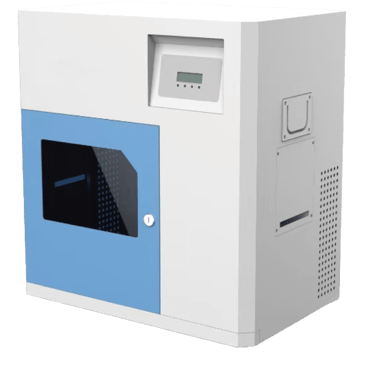

Product Overview

Model

HH-1600-L

Design standards

Industrial grade control system design greatly improves equipment operation stability.

Printing process

Laser etching

Supports laser etching printing of multiple card type documents,

Major function

Etching method

Dot mode, scan mode

Print mode

Single sided printing, double-sided printing, cli (variable laser imaging), mli (multi laser imaging)

Resolution

Max2400*2400dpi

Laser spot

0.01mm

Laser power

30w

Laser type

Fiber laser

Card thickness

0.5mm~1.1mm

Input card slot capacity

Automatic card entry and exit

Output card slot capacity

200 sheets (optional)

Communication connection

100 sheets

Electrical parameters

Wired mode (gigabit ethernet)

Equipment size

Rated voltage ac 85~264vac/47~63hz; the overall power of the machine is max650w, with a standby power of 50w.

Equipment weight

510mm*337mm*553mm

60kg

And supports writing of type a/b chip information based on the is014443 protocol (optional);

Support printing of cards with is0/iec7810id-1 size pvc, pc, and other materials that comply

with laser etching; Support automatic card issuance

Entry and exit card method

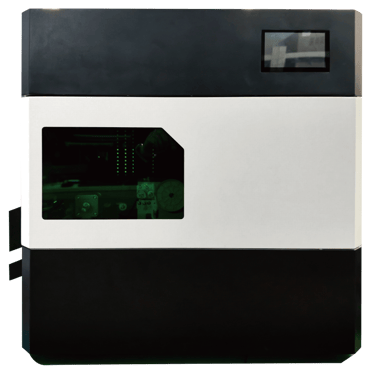

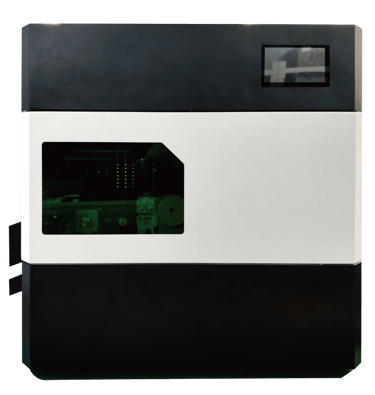

The laser etching printing and certification all-in-one machine can complete functions such as automatic card issuance, card information writing, and card laser etching printing in one stop, greatly integrating resources. Especially, one device supports both CLI and MLI laser etching printing methods, greatly improving the versatility of the equipment. An air filtration system is designed inside the equipment to prevent harmful gases generated during the etching process of various plastic cards, ensuring equipment safety. The equipment adopts an integrated design, with exquisite appearance, compact device modules, smooth curve design, simplicity and elegance, high-quality material selection, friction resistance, corrosion resistance, anti-static, and strong stability. It can be widely applied to ID cards, driver's licenses, social security cards, legal documents, and various work permits.
