Batch printing compatible with multiple materials
Making certificates has never been so simple
Intelligent issuance

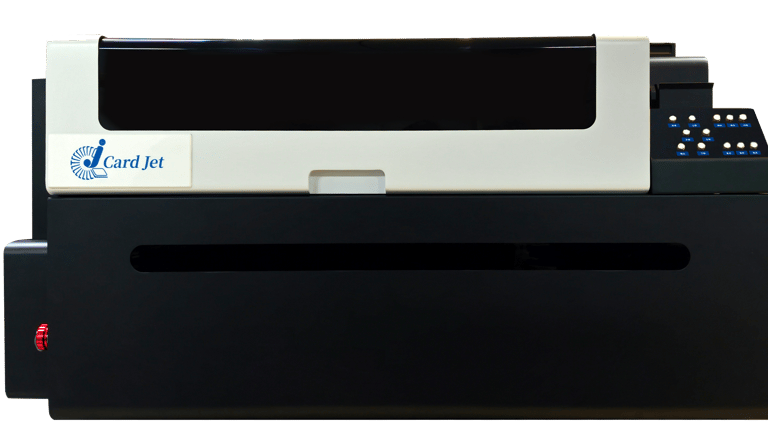

HH-8010-3U-3 is a high-speed UV card printer designed for high-end batch card production scenarios. Its most prominent feature is that it is equipped with three independent radio frequency units, which can physically isolate the upper, middle and lower three card positions for concurrent code writing, completely eliminating signal crosstalk when multiple cards are issued simultaneously and greatly improving the efficiency of smart card issuance. The equipment adopts a three-position parallel printing architecture, with an outstanding production capacity of up to 220 sheets per hour on one side and 110 sheets per hour on both sides. Combining LED-UV curing technology with a rich ink configuration (including optional white ink and varnish), it ensures bright and wear-resistant colors, truly achieving an integrated solution for efficient production and complex card issuance requirements.
Make every card a symbol of trust
The structure is simple and easy for daily maintenance and upkeep,Reduce downtime and maintenance costs.
Multi database integration
Multi format database direct connection,Zero error in certification,precise and unbounded data!
Cost effectiveness
Automatic card entry and exit,double-sided automatic flipping,Automatic sorting of waste cards reduces manual intervention,Improve operational efficiency.
Intelligent chip encryption, Personalized data distribution, data is sent and deleted immediately.
Intelligent issuance, safe and reliable
Automated processes
Each ink cartridge can print 8000+ CR80 card
Multi material compatibility
Specializing in environmentally friendly ink, compatible with multiple materials, High definition and durable, with colors that last forever like new.
Intelligent certification system
Integrated platform intelligent control,Multi threaded module intelligent parallel connection. Highly integrated operation simplifies complexity.
Specialized ink system
Support PVC, ABS, PET, PET-G Printing cards from various materials such as PC, Adapt to different scene material requirements.
Modular design
Intelligent operation and maintenance, worry free and effortless
Spray nozzle cleaning, ink volume detection, 24-hour continuous operation.
Portrait ID card
Id card and membership card
Media ID card
Event Registration Card
APPLICATIONS - WIDE RANGE OF CARD PRINTING POSSIBILITIES
Product specifications
Product Overview
Model
HH-8010-3U-3
Core advantages
High speed batch certification, excellent efficiency and quality.
Core performance
Three-position parallel printing (maximum format 290mm)
Product parameters
Printing method
UV inkjet
Curing Method
LED UV curing
Ink type
Yellow (Y), Red (M), Blue (C), Black (K), Varnish (optional), white (optional),Spot color (optiona)
Nozzle type
4 ink channels and 8 ink channels
Print mode
Single/double-sided automatic flip printing
Print Speed
Single sided 220 sheets/hour, double-sided 110 sheets/hour
Card Thickness
0.8m-1.0mm
Printing Size
CR80 standard card
Supported Materials
PCV、PET、ABS、PC、 Wood
Support Agreement
ISO14443 Type A/B,ISO15693 (M1/CPU/NFC)
Communication interface
Network interface
Ink cartridge capacity
200 grams/color (optional 130 grams)
Work environment
60 ℉ -90 ℉ (15 ℃ -32 ℃), 20% -80% non condensing humidity
Product specifications
Equipment size
1245mm*765mm*635mm (length*width*height)
Equipment weight
120kg
Package size
1330mm*815mm*830mm (length*width*height)
Package weight
20kg
Packaging method
Flight Case
Built-in host and system
Host configuration
Windows10 (Professional Edition) system; Intel Core i3 processor 16G memory; 256G solid-state drive
Three independent RF units (physically isolated at the top, middle and bottom, free of crosstalk) are released simultaneously
Architecture design
