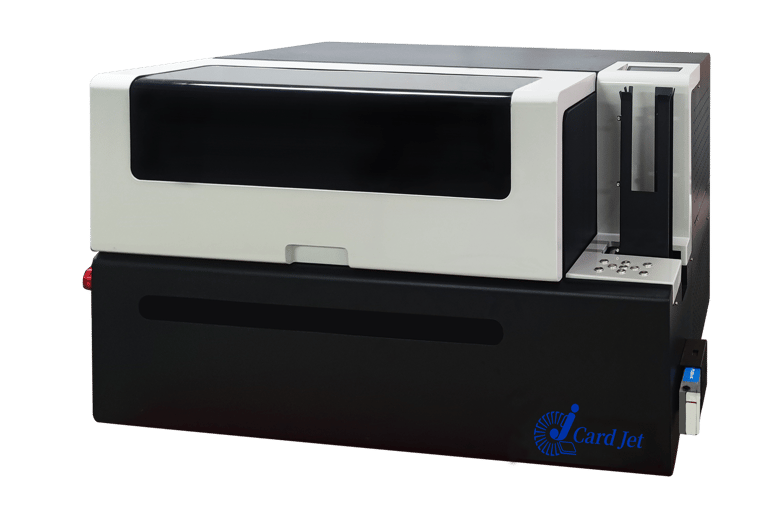

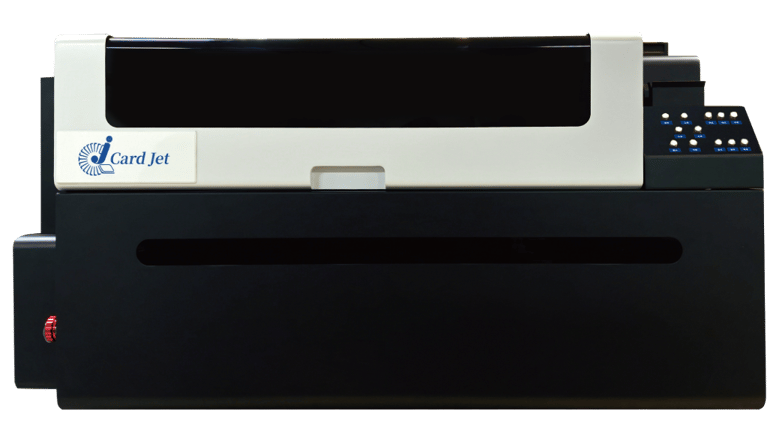

The HH-8010UV card printer series uses high-resolution printing technology and integrates powerful card issuance function modules, which can Meet the unique needs of users for batch identification card issuance and certification. With advanced printing technology and intelligent design, specifically designed for efficient card authenticationCreating scenarios, widely used in the production of ID cards, work cards, student cards, membership cards, and other identification cards.

300 sheets

Extra large capacity card slot

100%

Fully automatic double-sided printing

50%

Lower maintenance costs

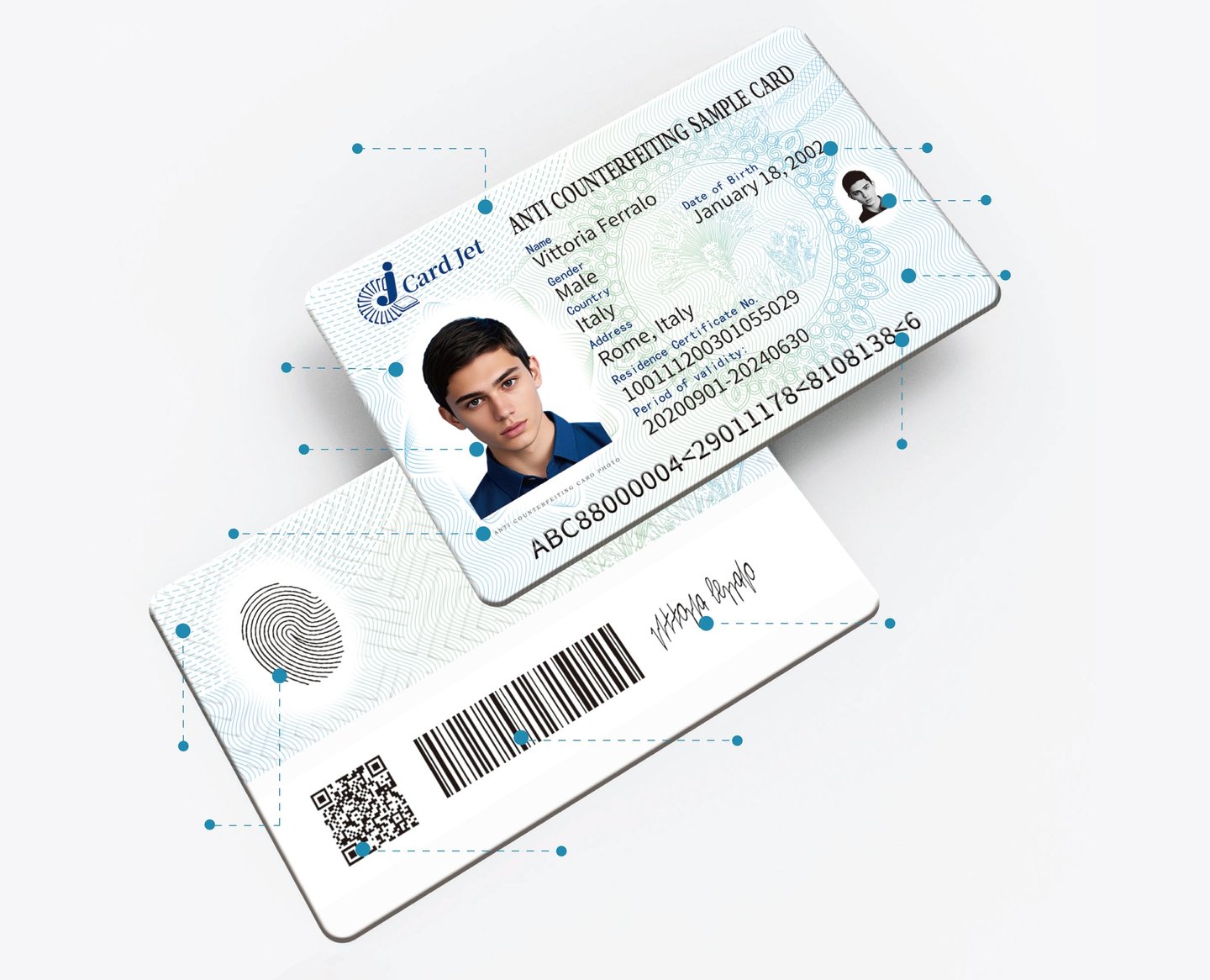

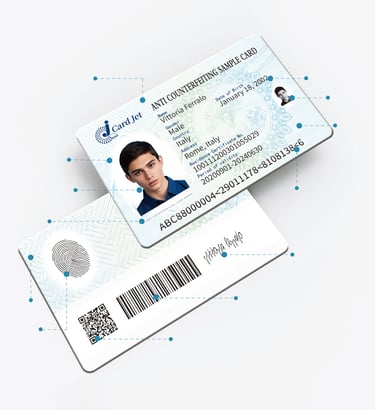

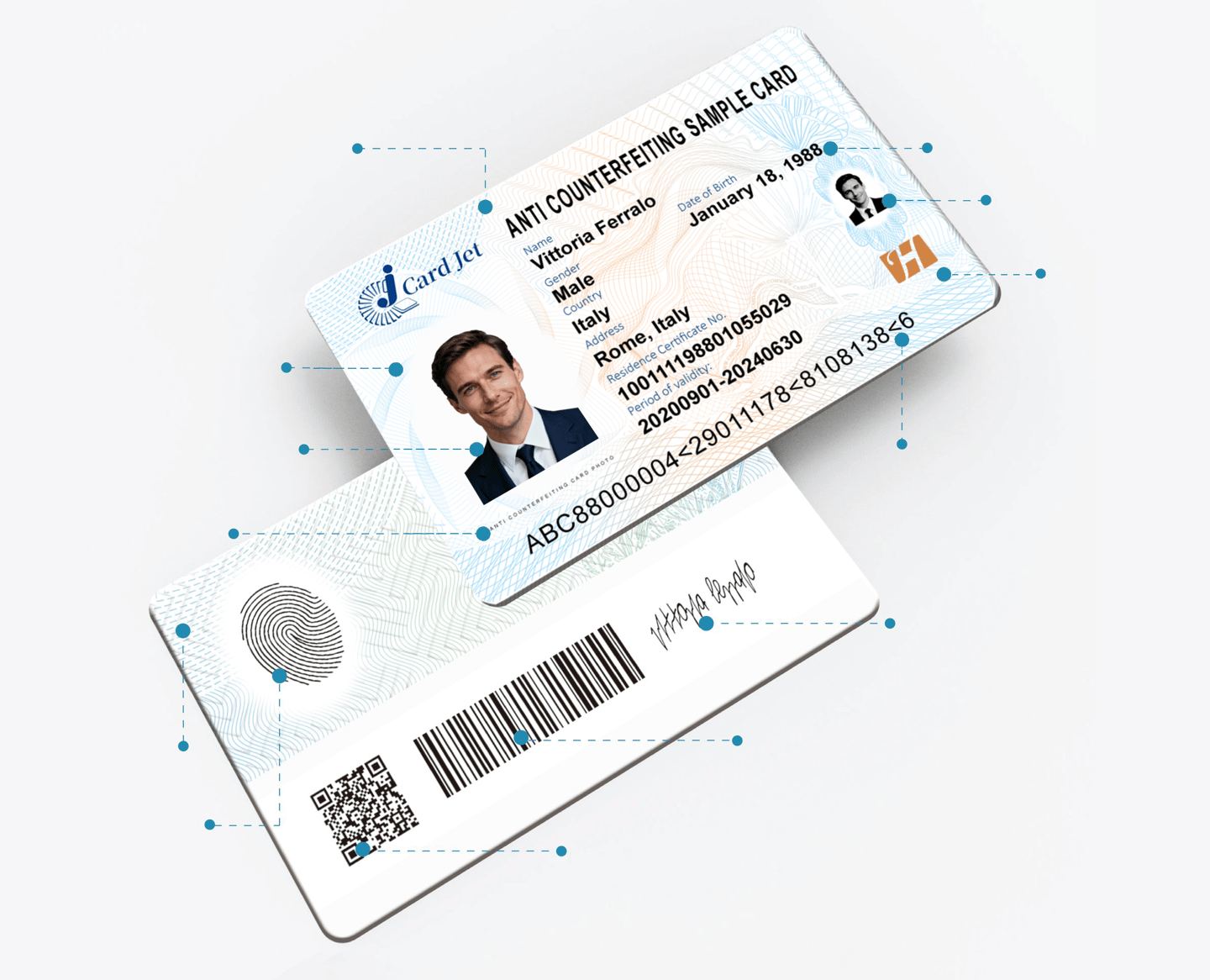

Laser UV dual engine drive Make every card a brand business card

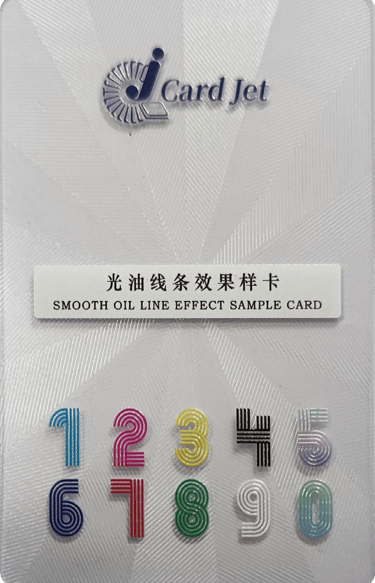

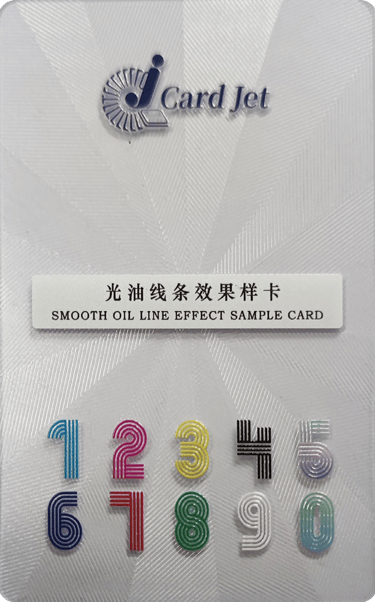

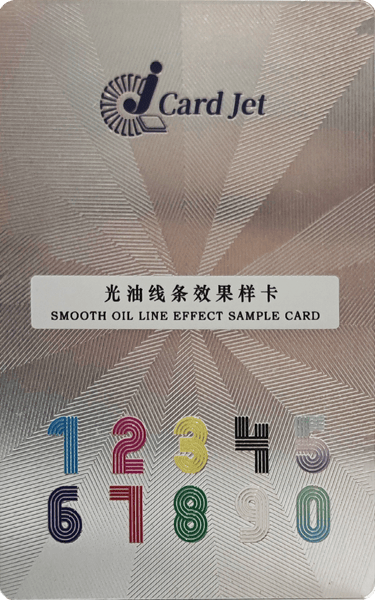

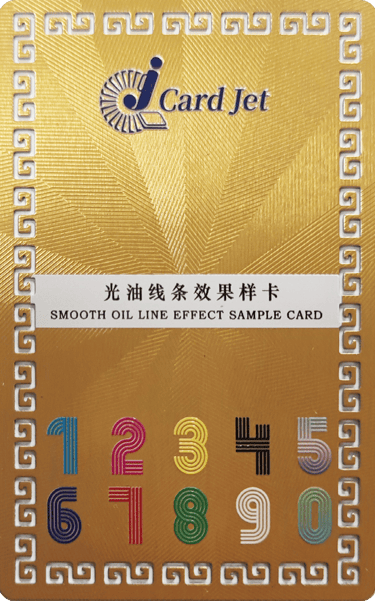

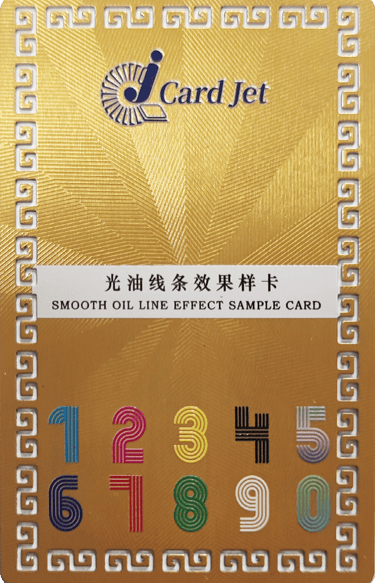

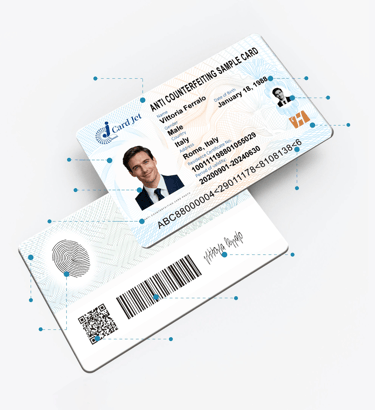

UV printing

Anti counterfeiting pattern

UV light

oil protection

UV printing

High definition portrait

laser etching

Miniature Text

rainbow printing

laser etching

fingerprint

laser etching

QR code

laser etching

bar code

laser etching

sign

laser etching

Variable Data Encoding

Rainbow printing

laser etching

High definition portrait

laser etching

Personalized Text

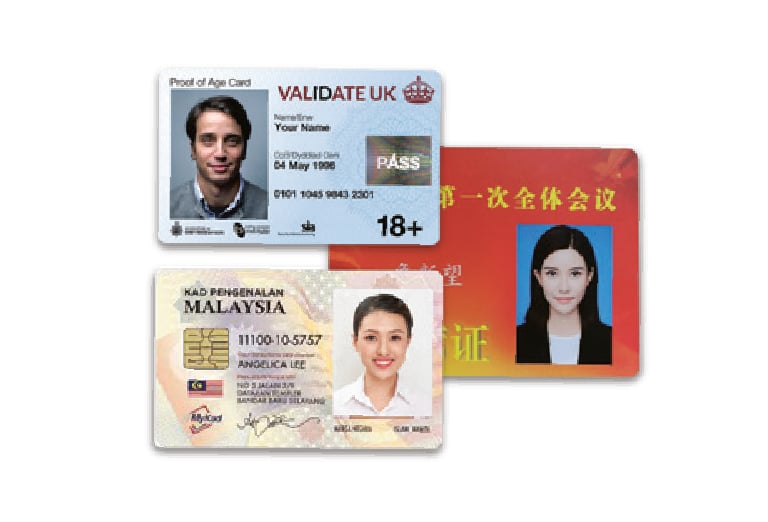

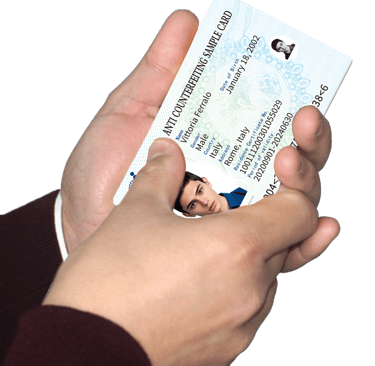

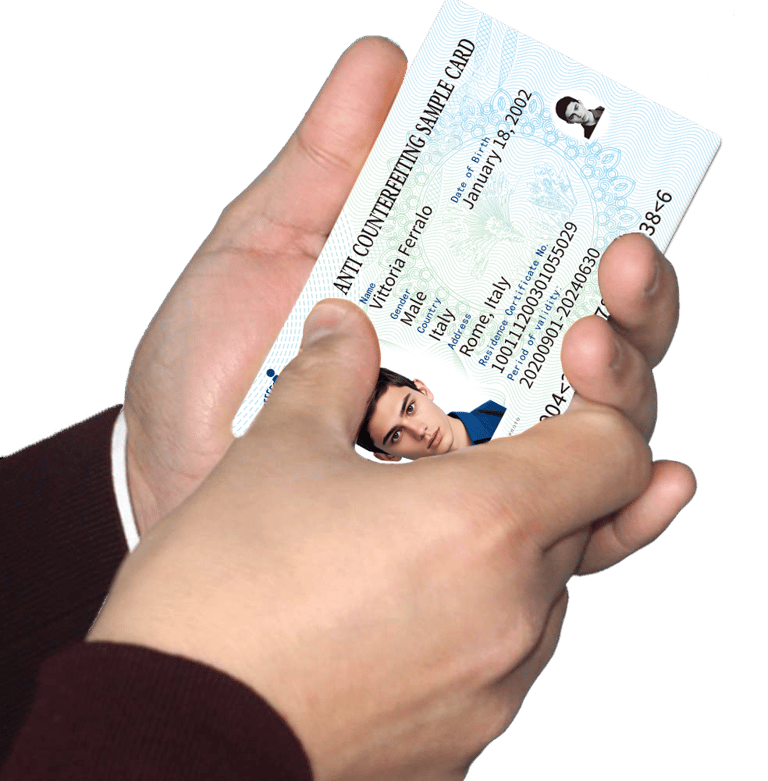

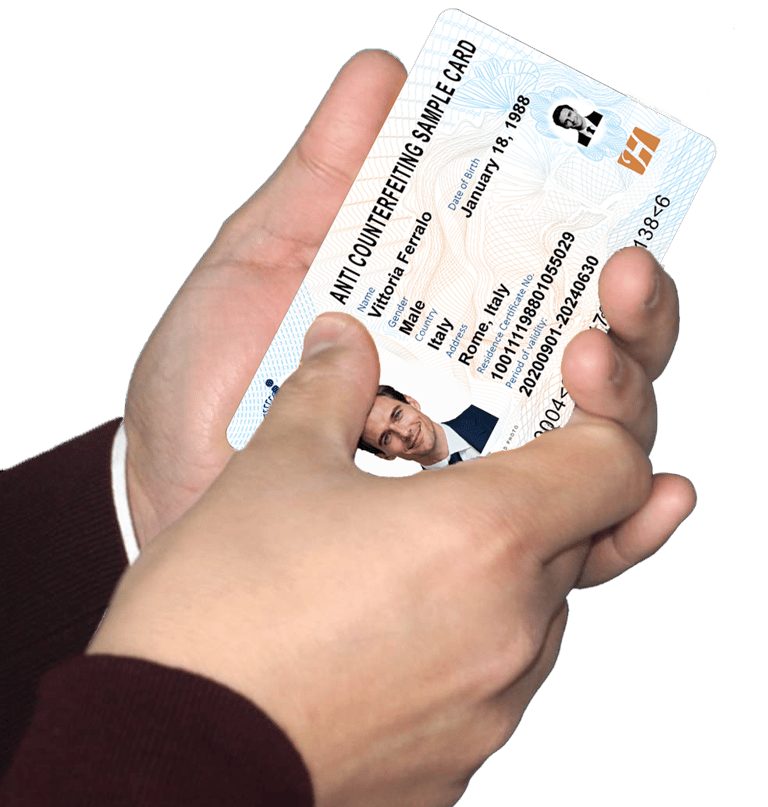

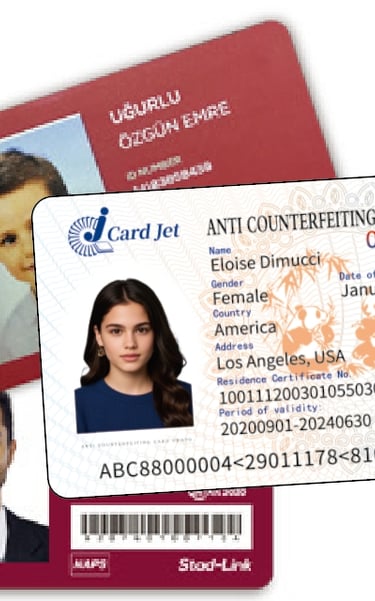

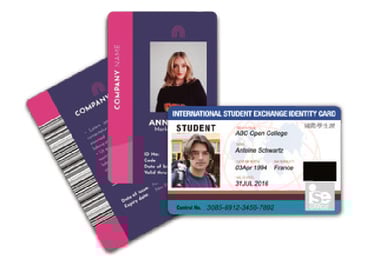

Portrait ID card

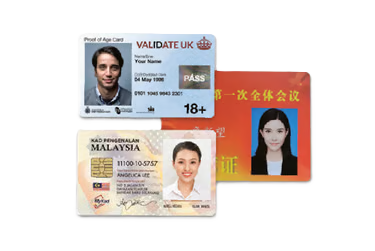

Id card and membership card

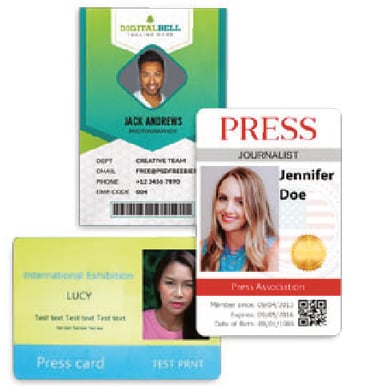

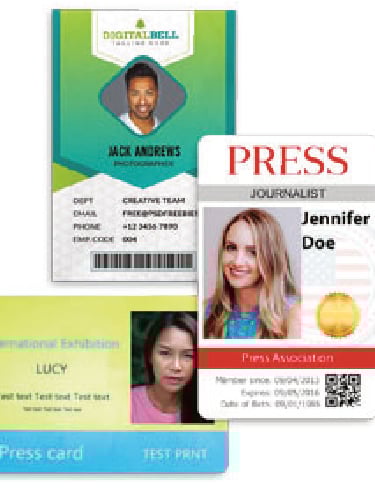

Media Credential Cards

Event Registration Card

APPLICATIONS - WIDE RANGE OF CARD PRINTING POSSIBILITIES

Make every card a symbol of trust

Simple structure, easy for daily maintenance and care, reducing downtime and maintenance costs

Laser Engraving Printing

Laser engraving printing is a non-contact, high-precision processing technology that uses a high-energy laser beam to precisely ablate and remove part of the material surface, thereby forming patterns or text.

Cost effectiveness

Automatic card feeding/ejecting,double-sided auto-flip, automatic rejection of defective cards, reducing manual intervention and improving operational efficiency.

Smart chip encryption, personalized data issuance,data is sent and deleted immediately.

Smart Issuance, Secure & Reliable

Automated processes

Drop-on-Demand (DOD) inkjet technology eliminates the need for expensive ribbon consumables, offering a very low-cost advantage

Dual-Process Synergy

Specializing in environmentally friendly ink, compatible with multiple materials, High definition and durable, with colors that last forever like new.

Smart Operation & Maintenance, Effortless

Printhead cleaning, ink level detection, 24-hour continuous operation.

Specialized ink system

The structure formed by laser engraving provides precise positioning for subsequent UV inkjet, promoting strong adhesion between the color layer and the substrate, achieving perfect overlay and process complementarity between black engraving and color images.

Modular Design

Multi-Database Connectivity

Direct connection to multiple database formats, zero error in card production, precise and boundless data!

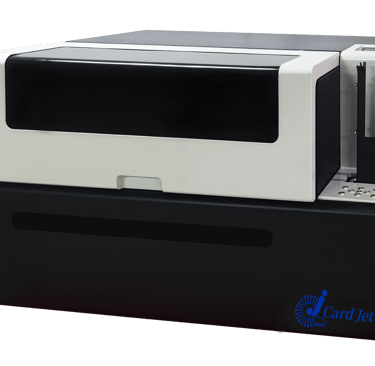

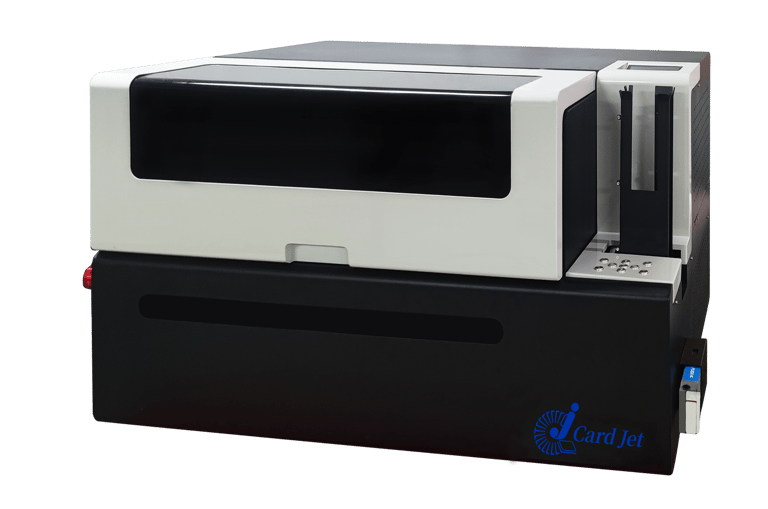

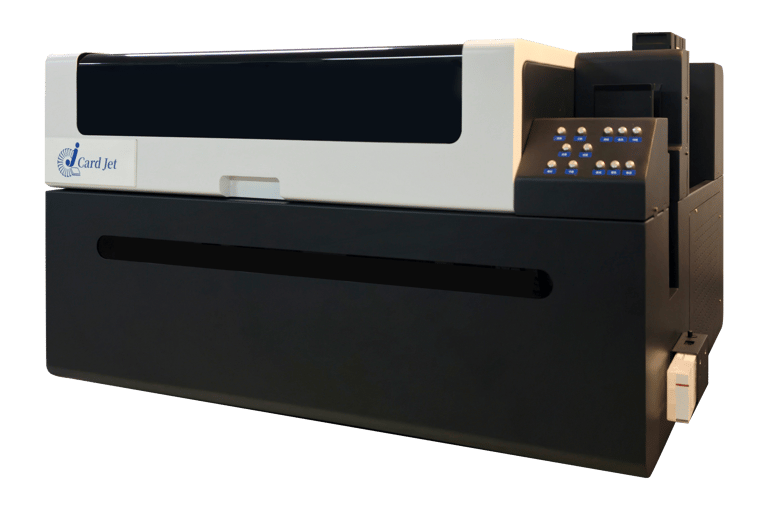

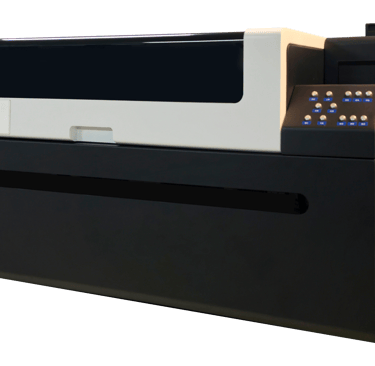

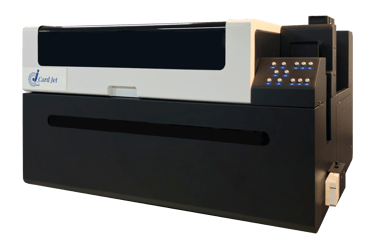

Product specifications

Product Overview

Model

HH-8010-UL

Core advantages

Lexible process combination, easily handling complex requirements

Core performance

Laser etching+UV inkjet combined process

Printing process

Product parameters

Printing method

Laser etching+UV inkjet

Laser Spot Size

0.01mm

Laser Power

30w

Curing Method

LED UV curing

Ink Types

Yellow (Y), Magenta (M), Cyan (C), Black (K), Spot color (optional)

Printhead Type

200 cards/hour (single-sided), 120 cards/hour (double-sided)

Card Thickness

Single-sided / Double-sided auto-flip printing

Printing Speed

CR80 standard card

Print Mode

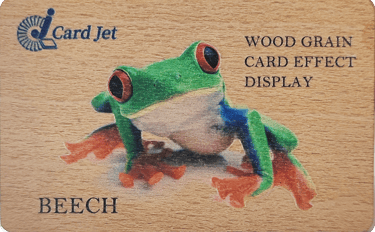

PCV、PET、ABS、PC

Read-write mode

Supports ISO1443 Type-A/Type-B

Card Materials

0.85mm ± 0.06mm (adjustable)

Ink cartridge capacity

200 ml per color

Product specifications

Equipment size

1245mm*765mm*635mm (length*width*height)

Equipment weight

140kg

Package size

1330mm*815mm*830mm (length*width*height)

Package weight

20kg

Packaging method

Flight Case

System requirements

Host configuration

Windows10 (Professional Edition) system; Intel Core i3 processor 16G memory; 256G solid-state drive

Supports three modes: UV inkjet, laser engraving, and laser engraving + UV inkjet

Laser Type

Fiber laser

Engraving Mode

Dot mode, scanning mode

Max. Laser Resolution

1200dpi

Card Size

4-channel / 8-channel
