A delicate figure and professional skills
Desktop All-Rounder
High-definition anti-counterfeiting in one device

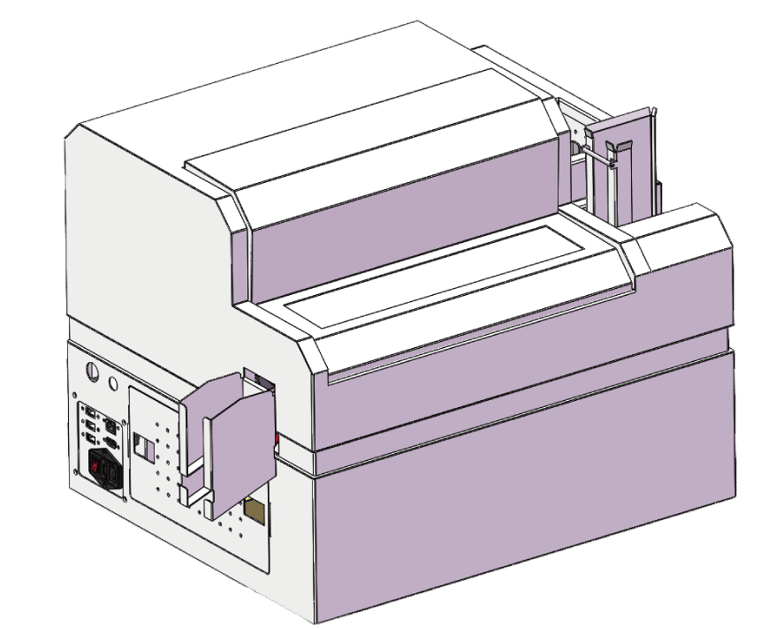

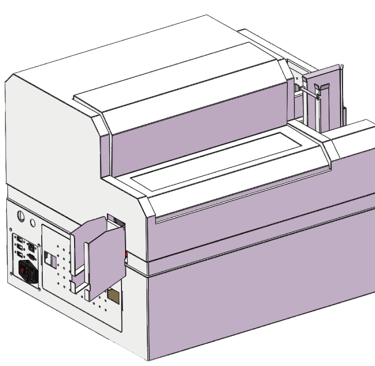

The HH-1800-M UV card printer is a small UV card printing device specially designed for small and medium-sized enterprises, campuses, medical institutions and government agencies. It breaks through the material limitations of traditional sublimation printers and uses advanced UV LED curing technology to achieve high-definition printing on various media such as PVC, PET, PC, and wooden cards.
This process breaks through the limitations of traditional printing, achieving dual optimization of quality and cost. The printed products are not only waterproof, wear-resistant, scratch-resistant and colorfast, with durability far exceeding that of traditional processes, but also present bright and vivid colors visually and have a delicate and unique touch.
Make every card a symbol of trust
On-demand inkjet technology (D0D) does not require expensive ribbons as consumables and has an extremely low cost advantage.
UV instant curing
The ink solidifies instantly within 0.1 seconds after being sprayed out, and the printing is completed without the need for drying. It can be obtained immediately.
Cost effectiveness
It has broken through the material limitations of traditional printers. It not only supports standard cards such as PVC, PET, and PC, but also can print directly on wooden cards
Automatic card entry and exit, double-sided automatic flipping, and automatic sorting of waste cards reduce manual intervention and improve operational efficiency.
Automated process
Multi-material compatibility
Intelligent chip encryption, personalized data distribution, and immediate data deletion upon release.
Compact and intelligent design
The mini body saves space and supports batch data and variable data printing
Intelligent distribution, safe and reliable
Compatible with multiple materials
Portrait ID card
Id card and membership card
Media ID card
Event Registration Card
Product specifications
Product Overview
Model
HH-1800-M
Product parameters
Printing method
UV inkjet
Curing Method
LED UV curing
Ink type
Yellow (Y), Red (M), Blue (C), Black (K),
Nozzle type
4 ink channels and 8 ink channels
Print mode
Single/double-sided automatic flip printing
Print Speed
Single sided 220 sheets/hour, double-sided 110 sheets/hour
Card Thickness
0.8m-1.0mm
Printing Size
CR80 standard card
Supported Materials
PCV、PET、ABS、PC、 Wood
Support Agreement
ISO14443 Type A/B,ISO15693 (M1/CPU/NFC)
Communication interface
Network interface
Ink cartridge capacity
200 grams/color (optional 130 grams)
Work environment
60 ℉ -90 ℉ (15 ℃ -32 ℃), 20% -80% non condensing humidity
Product specifications
Equipment size
715mm*478mm*480mm (length*width*height)
Equipment dimensions
50kg
15kg
Packaging method
Flight Case
Built-in host and system
Host configuration
Windows10 (Professional Edition) system; Intel Core i3 processor 16G memory; 256G solid-state drive
Event Registration Card
Architectural Design
Packaging weight
Equipment weight
Host configuration
