Make every card a symbol of trust

Color pages can be easily printed without plate making. Professional and personalized data printing, flexible output of uniform layout and personalized layout

Ultra-fast printing efficiency wins

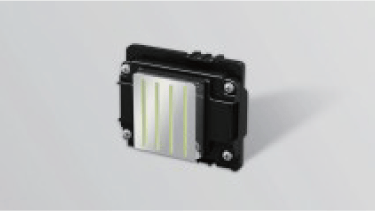

The HH-600 is equipped with industrial-grade piezoelectric printheads and intelligent algorithms, which significantly increase the linear speed while ensuring printing accuracy, thereby doubling production capacity and enhancing efficiency.

Special colors ensure worry-free color accuracy

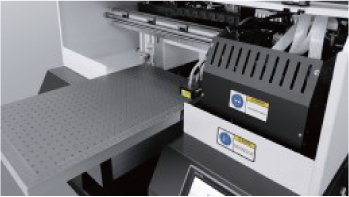

The HH-600 UV printer features an exquisite and balanced format design. It can not only efficiently complete the conventional printing of 402*512mm but also flexibly handle various card sizes, making it widely applicable.

Compact, exquisite, all-round and balanced

The appropriate format allows for flexible application

The HH-600 spot color system ensures accurate color. Its dual-nozzle configuration can be expanded to include white, transparent, spot and fluorescent inks, perfectly meeting all kinds of demanding and special printing requirements

The ink volume is precisely controlled drop by drop

Professional software enables users to independently and finely adjust the inkjet volume of each color channel in segments. This is crucial for achieving the best color and detail on materials with different ink absorbents, such as metal, glass, leather, and plastic

Flexible output without plate-making

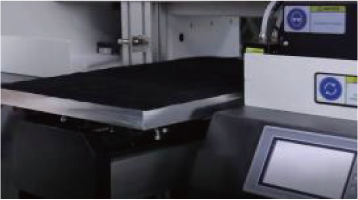

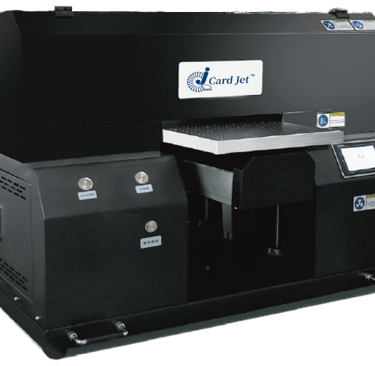

HH-600 integrates the best of its compact body without compromising on performance. It saves precious space while offering complete industrial-grade printing capabilities.

Fine-tuned curves master colors

The HH-600 software not only offers ICC configuration and fine ink volume control, but also allows for the customization of various printing parameters, enabling users to operate easily between speed and precision

The configuration parameters can be flexibly adjusted

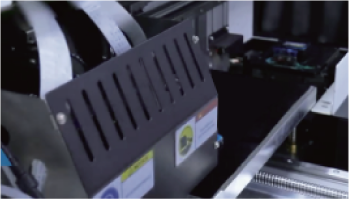

Advanced parameters such as the nozzle ignition frequency, feathering mode, and the number of Pass channels can all be adjusted, enabling users to find the best balance point among speed, accuracy, and effect, and meeting different demands ranging from high-speed sampling to high-precision finished product output

Compatible with multiple materials

Color page

CWooden cards and metal cards

Efficiency Enhancement Card

Alien cards and badges

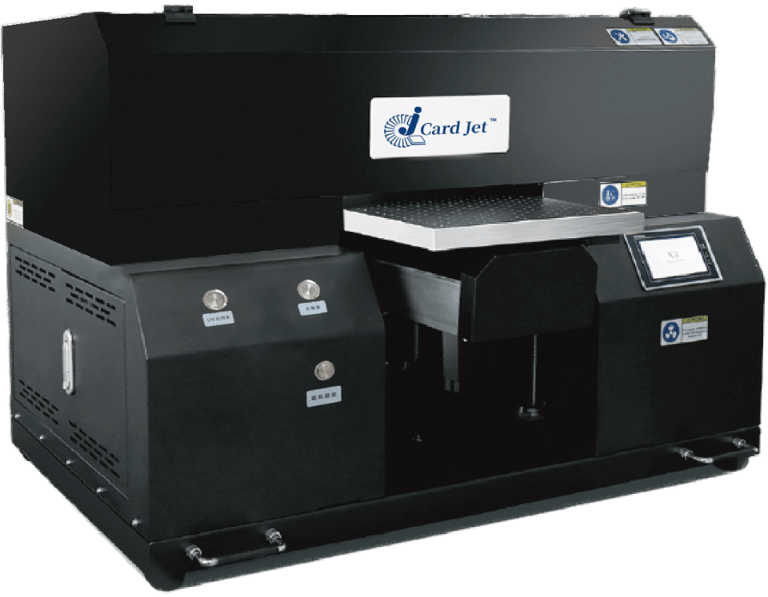

Product specifications

Product Overview

Model

HH-600

Core advantages

Large platform printing, no longer limited by plate size

Printing Method

UV Inkjet

Product parameters

Resolution

Max. 2400 dpi

Max. Speed

2-3 m²/h

Print Head Height

Max. 200 mm

Platform Size

400mm × 600mm

Height Adjustment

Automated

Ink Supply System

Professional ink supply system

Ink Colors

CMYK + W + V + Z

Curing Method

UV-LED lamp

Interface

USB 3.0

Min. Droplet Size

3.8-21 pL

RIP Software

Maintop (Standard configuration)

Temperature 18°C–30°C, Humidity 30–70% RH, clean room, low dust, low sunlight exposure

Work environment

AC 110/220 V, 50 Hz/60 Hz

990mm*925mm*700mm (length*width*height)

Power Supply

105kg

Devcice weight

Device Dimensions

Print Head

U1
